Redmark

Electronic document marking application for NEXTSTEP

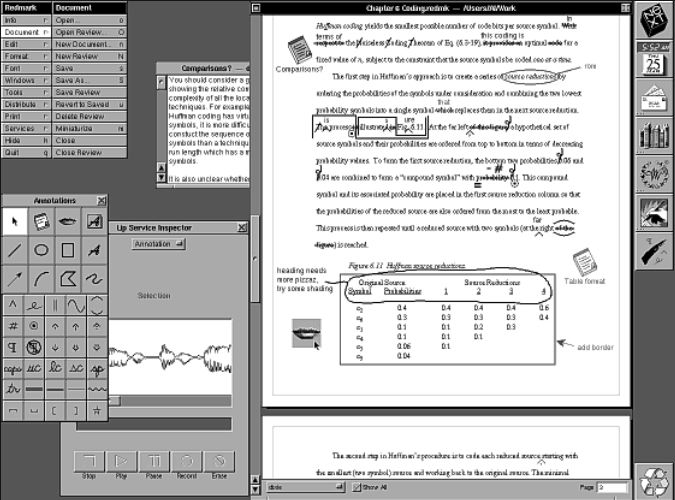

RedmarkScrn

Redmark software allowed you to mark up all types of documents right on your screen. Unlike other applications whose annotation tools work only with that application's documents, Redmark let you use one application to mark up all of your documents, from word processing to database, regardless of the application you used to create them. Redmark was as simple to use as marking on paper with a red pencil.

The author viewed the reviewers' comments in Redmark while simultaneously editing the document in the original application. Comments were easily incorporated using copy and paste.

Redmark

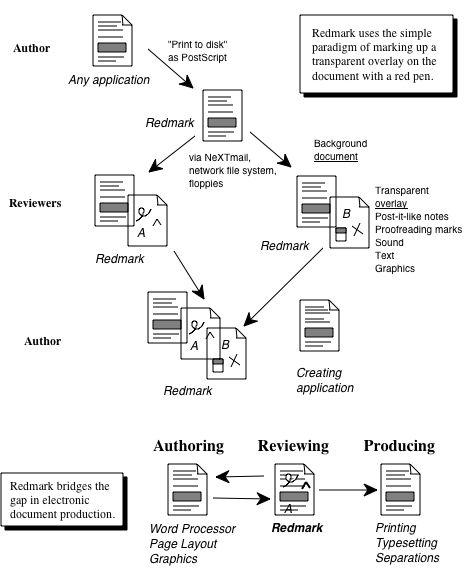

In the review process, the author distributes a document to reviewers by e-mail or by placing it into a folder accessible over the network. Reviewers then use Redmark to place their comments into transparent overlays on (he document, leaving the original document unchanged. Reviewers could use sticky notes, voice recordings, text annotations, standard proofreading symbols, and drawn or imported graphics for their comments. The author easily flipped through every reviewer's comments in Rcdmark while simultaneously editing the document in the original application, freely using cut and paste to incorporate the comments.

What made Redmark an excellent choice:

1. Redmark let you implement a paperless review cycle. This sped up your review process because there were no papers to distribute or to get lost on someone's desk. All distribution was done electronically by e-mail or by placing the document into a folder that was accessible over the network.

2. Redmark was modeled after the traditional review methods. Because Redmark was as simple to use as marking on paper with a red pencil, the learning curve was very fast.

3. Redmark did not require each reviewer to have a copy of all the applications that you used to create documents. Redmark let you use one application to mark up all of your documents regardless of the application used to create them.

4. Documents are often reviewed by putting comments directly into them using a distinctive font. However, this disturbs the pagination of the original document, makes it difficult for the author or editor to determine who entered which comment, and can lead to inadvertent changes in the original. With Redmark, the reviewers cannot change the original document. Each reviewer maked their comments in a separate overlay. The original pagination of the document was preserved and could be commented on. The author could easily flip between each reviewer's comments, telling immediately who made each comment.

5. Some applications have built-in markup tools. However, these tools are not standard across applications and are often not comprehensive. With Redmark, your markup could be standardized. Also, since Redmark was designed specifically for markup, it offered a wider variety of annotations: sticky (Post-it) notes, voice recordings, text annotations, standard proofreading symbols, and drawn or imported graphics.



Important Features of Redmark

Review any application's documents. Redmark used PostScriptí that had been "printed to disk" from the original application using the Save button in the Print panel. Thus, you could mark up a FrameMakerí brochure just as easily as a WriteNow letter. Further, you could mark up any document that conforms to the PostScript structuring conventions regardless of its source, such as documents produced on other computers such as the Macintosh, DOS/Windows, Digital VAX/VMS, and Sun.

Mark up a document overlay. Reviewers placed comments into a transparent overlay on the document. They could not change the original document. This was very similar to marking up a paper documents with a red pencil - but better. Redmark was simple and easy to learn.

Standard proofreading symbols. This maked for more consistency in how reviewers annotated the document. A site could even edit Redmark's standard proofreading symbols to customize them to their own conventions. However, the full palette of basic drawing tools was still available for the reviewer's use.

Post-it notes. Reviewers could place long text comments into the review as a single icon, similar to sticking a Post-it note on paper. This icon opened up into a full text-editing window.

Voice annotation. Sound is a concise, succinct, and personal way to annotate that carries additional information through tone and inflections.

Imported annotations. TIFF and EPS graphics and SND (sound) files could be imported into a Redmark review by simply dragging their icons into the document window.

Document history. The author could see at a glance the important events in the review cycle of the document. Redmark shows when the document was distributed for review and when each reviewer's comments were returned.

WYSIWYG. Reviewers saw the exact pagination, header/footers, and presentation of graphics as they were to be in the final printed document. Therefore, they could comment on the document layout as well as its contents.

Consolidates all reviews. The author had easy access to "flip through" every reviewer's comments right on the screen. This made it easier to compare and contrast comments from different reviewers. The author could view all the reviews in Redmark while editing the document in the creating application, freely using copy and paste to incorporate the comments.

Transmittals. Documents could be distributed and reviews returned via network file systems, e-mail, and floppy disks. Redmark was especially advantageous when reviewers were remotely located, but networked.


Questions and Answers about Redmark

Why is Redmark better than the traditional method of marking up a paper copy of the document with a red pencil?
Previously, reviewers have not had the same variety of expression with electronic media as with paper, pencil, and voice. With Redmark, they do. For example, reviewers can easily annotate their review with sound and graphics. Now, with the proper tools, there is no reason that electronically produced documents shouldn't be reviewed electronically.

What kinds of documents does Redmark work with?
Redmark works with documents produced by virtually any NEXTSTEP application. The documents to be reviewed are simply printed to disk from the original application so that they are in a common PostScriptí format. For example, Redmark works well with WriteNow or WordPerfect letters, FrameMaker brochures, TopDraw, Create, or Adobe Illustratorí drawings, Mesa or Improv spreadsheets and graphs, and Edit source code. In addition, Redmark will handle virtually any document that can be output as a file that generally conforms to the PostScript structuring conventions, regardless of the platform or application that generated it. For example, Redmark has been tested with documents from several applications on the Macintoshí, IBM PC and compatibles (MS-DOS and Windows 3.1î), Digital VAX, and Sun. Since many PostScript files from other platforms are not quite "conforming", Redmark gives the author (but not the reviewers) the ability to further manipulate the document image by repositioning, rotating in 90 degree increments, and flipping horizontally and vertically. The only PostScript files that Redmark cannot properly handle are those in which the pagination is done solely with showpage commands and not delimited with %%Page comments.

How long will it take us to learn to use Redmark?
Redmark mimics the traditional method of marking up a document with a red pencil. Each reviewer uses an electronic transparent overlay over the original document. Notations selected from a tool palette are typed, drawn, or spoken onto this overlay. Since this interface is simple, intuitive, and follows NEXTSTEP style guidelines, you can become proficient with Redmark in less than an hour.

Couldn't I just distribute the document in the original electronic form, say as a FrameMaker or WriteNow document, and have comments entered directly into it by the reviewers?
Yes you could. However, with Redmark, the reviewers don't have to have or know how to use the original application, e.g., FrameMaker. Multiple copies of Redmark are generally less expensive than copies of the original application. Plus, it is often difficult for the author to sort out the comments from the original text when they are directly entered into the document. Plus, an even less expensive, view-only version of Redmark is available, named Redview. In educational applications, students can prepare assignments in a word processor and send the print-image to the instructor. The instructor uses Redmark to grade the assignment and returns the Redmark document (the original assignment with the overlay comments) to the student. The student uses the view-only Redview to see the instructor's comments and the word processor to correct the assignment.

How do the reviewers get access to my document?
If you are on a network with a shared file system, reviewers can access the document directly through the mounted remote file system. Otherwise, the document and reviews can easily be transmitted via e-mail. When reviewers are not on a network, floppy disks can be used.

Can the reviewers change my original document?
No. Reviewers only get access to a read-only print image of the original document.

Can someone else change my review?
Reviews are protected with your username and password. You can, of course, edit your own reviews. However, another user (reviewer or author) can only edit your review if they have your password. You can also prevent other reviewers from viewing your review, too.

Everyone seems to use different proofreading notations. What can I do?
Redmark provides the standard New York Times Manual of Style and Usage proofreading marks for the reviewers to use. If your site uses other proofreading marks, you can edit the supplied proofreading marks to conform to your conventions. In all cases, the reviewer is free to annotate with the full set of drawing tools available through the Redmark tool palette and with imported graphics.

It seems like my document always get buried under a stack of papers on someone's desk. Can Redmark help?
First, Redmark formalizes and tracks the review and approval cycle for you, the author. You can tell at a glance when and to whom the document was distributed and whose review hasn't been received yet. With no papers to get lost in the jumble of someone's desk and with no delivery delay in electronic distribution, you also typically get quicker feedback.

I have a network with a mix of Motorola- and Intel-based computers running NEXTSTEP. Are there any compatibility problems?
No. The Redmark application is a "fat" binary, so it runs on both the original Motorola-based NeXT “black” computers and the Intel-based (486 or Pentium) "white" computers. On a network, the application server can be either black or white and the clients can be a mix of black and white; it doesn't matter. The Redmark document format is processor type independent, too. So, an author using a black NEXTSTEP computer can produce and distribute a document to reviewers using a mix of black and white NEXTSTEP computers. The only compatibility requirement is that Redmark must be run on computers using NEXTSTEP 3.0 or later.

I have another type of Unix computer on the same network. Can I still use Redmark?
Maybe. Redmark only runs on NEXTSTEP. However, documents from another networked computer (Unix or not) can be handled by Redmark running on NEXTSTEP, if the documents are in the format of conforming PostScript files. All reviewing would have to take place on NEXTSTEP. The reviewed documents could then be viewed on a non-NEXTSTEP computer by generating a print-image PostScript file of the annotated document and sending it to a PostScript-displayer application on the other computer.



RedmarkUserManual

Alembic Systems International

Epitome Incorporated
Educational discounts and multi-user site licenses were available.
$285
