Movie Machine Pro
The digitized image could be
stored at any time as d TIFF file or printed out for
further uses. You could convert any of the input signals or
stored images back to video. In combination with the CODY
board, you could record and play back movies from and to
video. MMTV controls the live overlay, TV-Tuner and simple
video out.

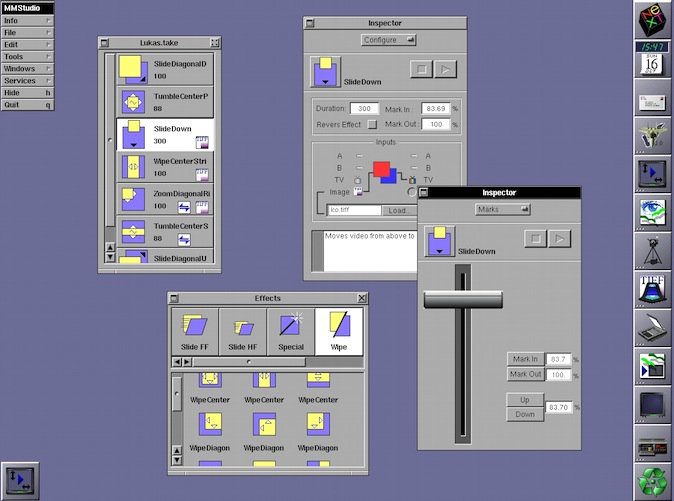

MMStudio, the software option, provided you with your own
private desktop video studio. You can cut, mix, or fade any
combination of the live video sources and see immediate
results on a video monitor or record them to a VCR. A
realistic image of a T-bar controls effects such as wipe,
flip, and move. In addition, composing images into the live
video was supported by color-, chroma- and luma- keying.
Because the overlay was limited to screen resolutions of
800 x 600 and a color depth of 16 bits, the use of the
Screen Machine II was recommended for high-quality
digitizing.
- MMTV controls the live overlay, TV-Tuner and simple video out. It is supplied with the board.
- MMStudio is the optional software for your Private Desktop Video Studio. It gives you the ability to edit the live video with over 50 digital trick effects.
- CODY, an optional Hardware Compression board allows the digitization of a video sequence in real time directly to harddisk. You may then use the animation in NEXTIME.
Features
- 2 x Video Inputs
- 1 x Video Output
- 1 x Stereo Audio Output
- Cable TV-Tuner
- live Overlay up to 800x600
- NTSC and PAL full resolution
- linear video editing
- trick effects
MovieMachine_manual_letter
CODY
Everybody seems to be talking about NEXTIME. They are talking, but we are doing. The CODY(TM) is a hardware option for the SCREEN MACHINE II and MOVIE MACHINE PRO, which realizes a realtime hardware compression based on a M-JPEG algorithm for complete VIDEO sequences. The compression ratio may be controlled between 1:16 and 1:120 by the software to get the best results in resolution and frame rate for your system. The digitized movie is stored in a NEXTIME compatible format for further use. This means non linear video editing directly on the harddisk without losses. This is a feature which up until now was only affordable to professional studios.
The CODY is bidirectional, that means you may also play back NEXTIME movies thru this board. Using it togheter with a MOVIE MACHINE PRO the movie can even be recorded to a VCR again. For any further video details please refer to the SCREEN MACHINE II and MOVIE MACHINE PRO entries.
PRICE
$675.00
AVAILABILITY
Intel July 94
interpersonal-computing GmbH
$750 board and MMTV
$380 MMStudio only'
Qty in the collection: 0
